Industrial oxygen Flow Meter
Industrial oxygen flow meter is a digital flow meter that can measure the flow rate of industrial oxygen. Choosing the right flow meter is important for measuring and monitoring oxygen flow rate. Oxygen producing industries require accurate flow meters as oxygen tanks or tankers are filled with known volume (with defined pressure) and manufacturers charge their customers based on the volume of gas.
Manas Microsystems is a supplier, manufacturer and exporter of Industrial Oxygen Flow meter. These flow meters are used in many industries including oxygen production equipment manufacturers. In India, the Maharashtra government is making significant efforts to make the state self-sufficient in oxygen production and many other states are following this trend. The sugar industry can play a leading role in this effort as oxygen is one of the by-products of the sugar manufacturing process. Manas is supporting the sugar industry by providing industrial oxygen flowmeters with high accuracy measurements.
Features :
- Direct measurement of mass flow.
- No pressure or temperature compensation required
- 20:1 turndown.
- Wireless data transfer is possible. Remote readings are available on wireless.
- Pulse, milliamps, and RS485 output for networking
Applications :
- Oxygen manufacturing plants
- Sugar industry
- Chemical Industry
- Refineries
- Steel Industry
Benefits :
- Precise measurements of oxygen flow rates enable industries to monitor and control the exact amount of oxygen delivered within a system or process.
- Enhance productivity and quality while minimizing waste
- Long-term reliability, contributing to the stability and efficiency of industrial operations.
Product Details :

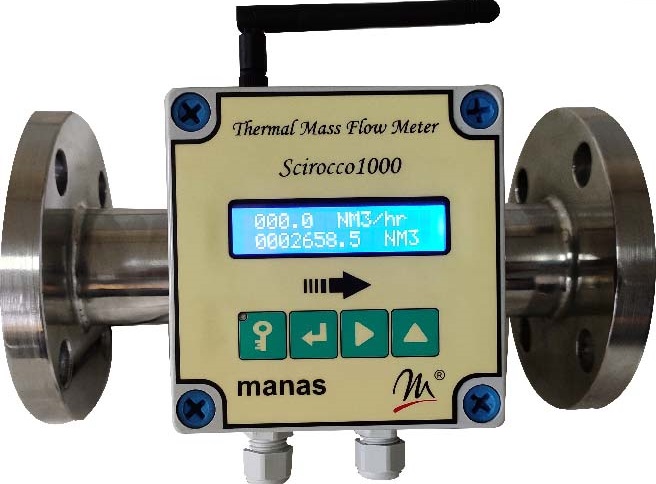

Model No | Scirocco 1000-1 & Scirocco 1000-2 |
Scirocco 1000-1 | Sensor and transmitter can be mounted directly on service pipe just by drilling holes with clamps provided. (No spool pieces) |
Scirocco1000-2 | Complete with a spool with an end connection of flange /BSP(M) Threading. |
Service Fluid | Dry & Clean compressed Air / Gas. (Mixture of gases not applicable) |
Line Size | DN 15 to DN 200 |
End Connection | Flange/BSP(M) Threading/ Direct clamp mounting. |
Accuracy | ±3 % of Actual Flow Rate between 100% to 5% of Calibrated range |
Display | Blind/LCD 16/2. |
Output | 4-20 mA/RS 485, Pulse, Wireless Data Transfer. |
Ingress Protection | IP- 65 |
Operating Fluid Temp | 0 – 100℃ |
Operating Fluid Pressure | Up to 10 bar |
Power Supply | 24Vdc/150mA (Without Wireless communication) 24Vdc/300mA (With Wireless Communication). |
FAQ's
An industrial oxygen flow meter is a device used to measure the flow rate of oxygen within industrial processes. It provides accurate measurements of the volume or mass of oxygen passing through a specific point in a system over a defined period.
Factors to consider include the flow range, accuracy requirements, pressure and temperature conditions, compatibility with oxygen (material construction), installation requirements, and environmental conditions of the application.
